The Vorsa is the most versatile Ride1Up model to date and was designed with rear passengers in mind. This guide covers the installation of Captain's Chair bundle which is a great comfortable and secure option for a single rear passenger.

Including:

• Extended Rear Rack
• Passenger Kit
• Captain's Seat
• Extended Foot-Rests
• Wheel Guard

Together, these components allow the Vorsa to be configured in a number of ways and provides a premium passenger seating experience. This is not an extensive list of all of the accessories compatible with your Vorsa and more accessories can be found here: Ride1Up Accessories

Vorsa Extended Passenger Rack

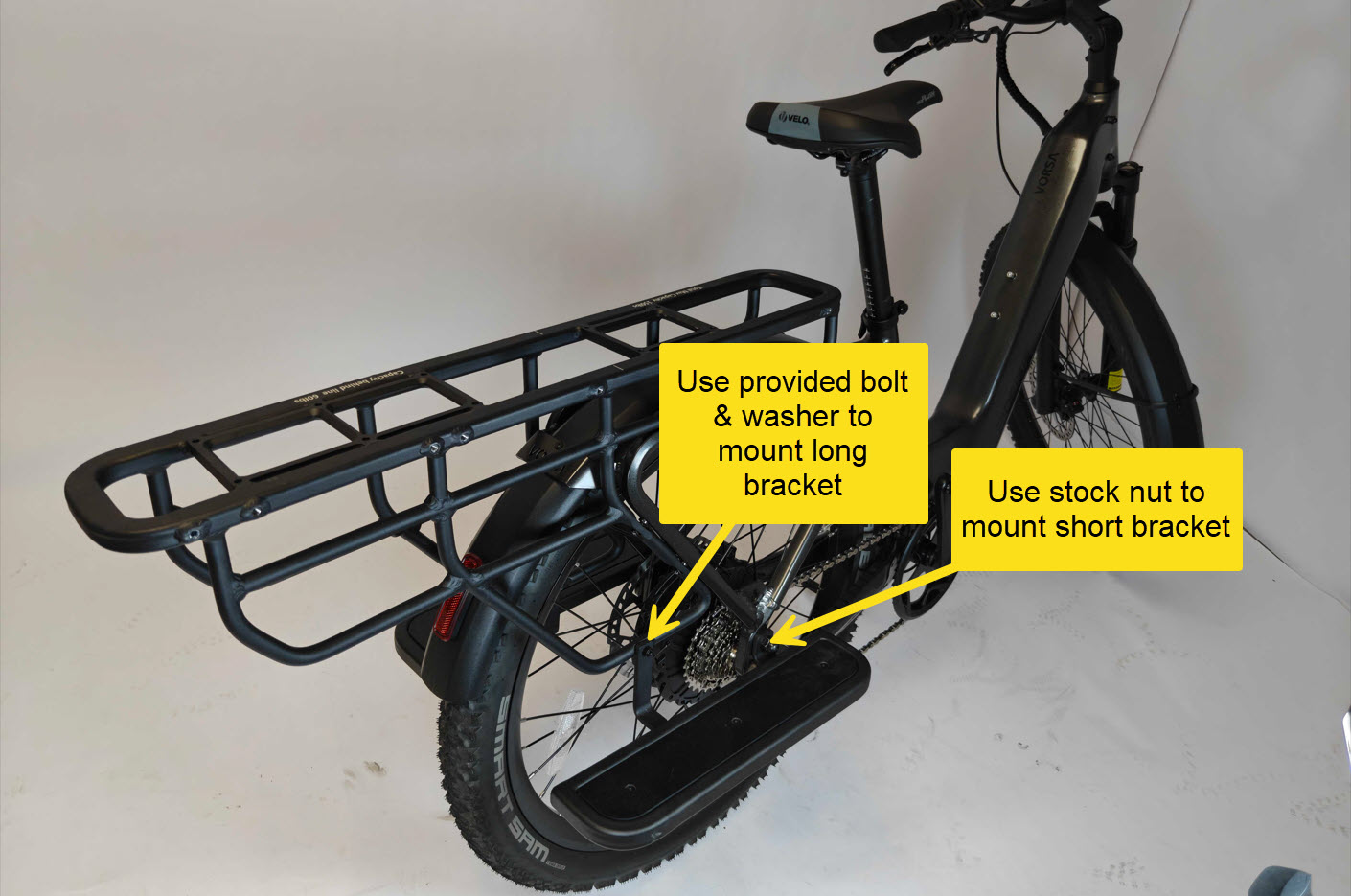

All of the extended passenger accessories were designed to mount to the Extended Passenger Rack so this product will be needed to install all of the following accessories. Installing this rack onto the bike is as easy as unbolting the stock rear rack and bolting on the new extended rack.

Remove the Stock Rack

Installing the Extended Passenger Rack

Extended Foot Rest Installation

This accessory bolts onto the trailer mount on the frame as well as the Extended Passenger Rack. The provided nuts will not be needed for this model and can the provided bolts thread in from the inside out.

Foot Rest Install

Wheel Guard Installation

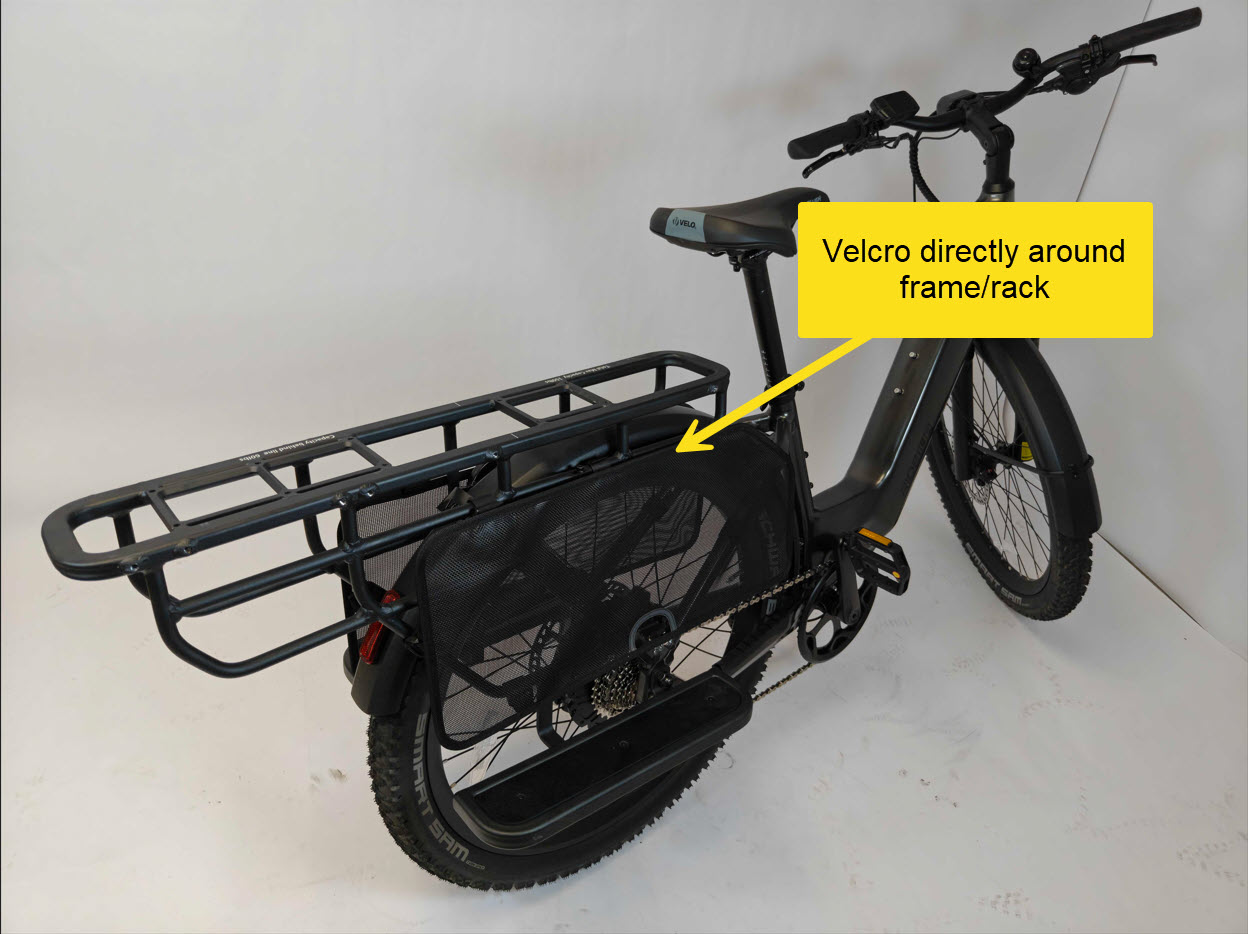

The wheel guard simply straps to the frame with the included velcro straps.

Wheel Guard Install

Passenger Kit Installation

This accessory kit will include a Connect+ seat, handlebars, and foot pegs. For this bundle, the foot pegs will not be needed and only the seat and handlebars will need to be installed.

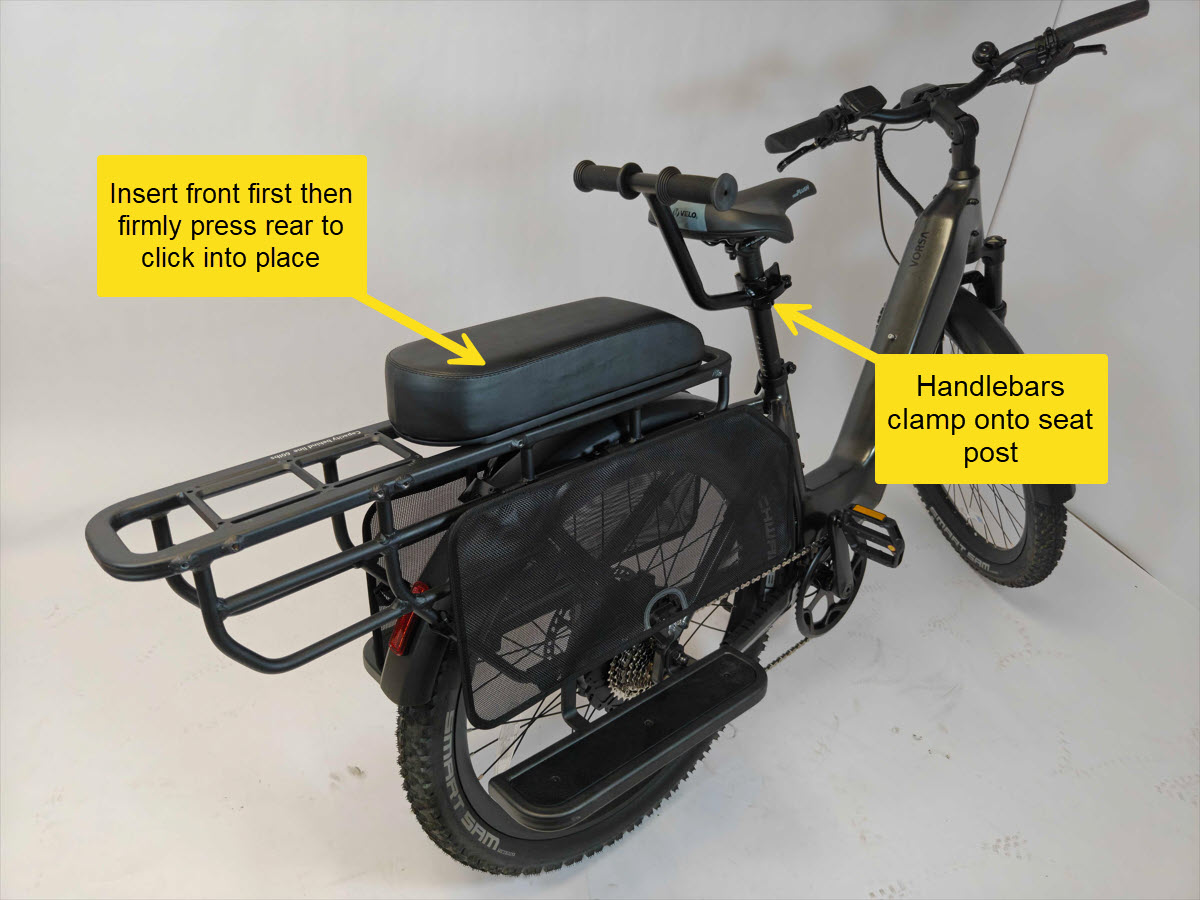

The seat comes already assembled and ready to clip into the front Connect+ reciprocal on the Extended Passenger Rack. This product uses our Connect+ system which allows you to easily remove the accessory by pressing the lever on the bottom. The handlebars simply clamp onto the seat post of the with the quick release lever.

Passenger Kit Install

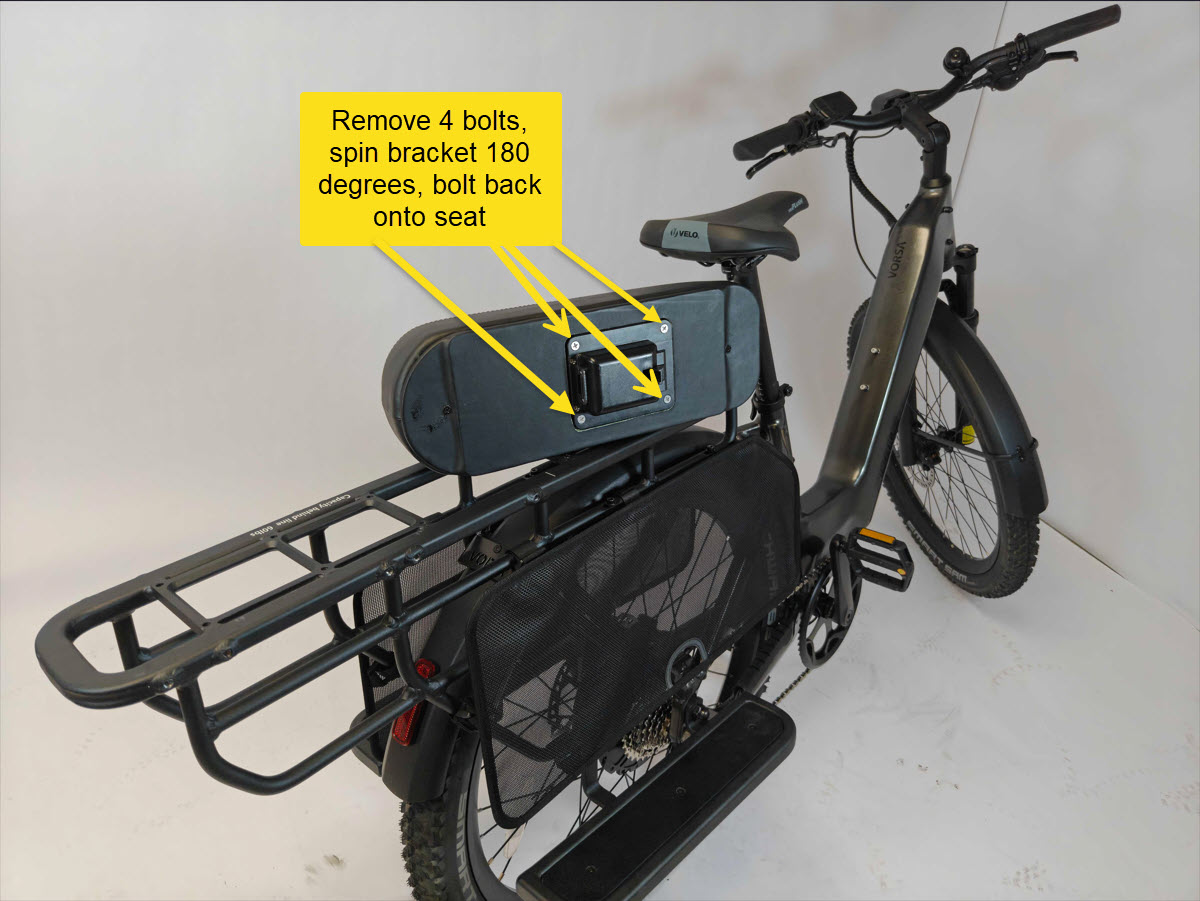

Pro Tip: For a better fit with the Captain's Chair and easier removal, the Connect+ latch bracket can be spun 180 degrees to how it arrives. The seat would then be installed back to front giving clearance for the Captain's Chair.

Passenger Seat Fit Adjustment

Captain's Seat Installation

The Captains Seat comes in two parts that can be installed on the rack. This accessory will use the midpoint threaded boss's on the side of the rack just behind the passenger seat. If the Connect+ bracket is not turned around as seen above, the backrest will be tight against the frame but it will fit.

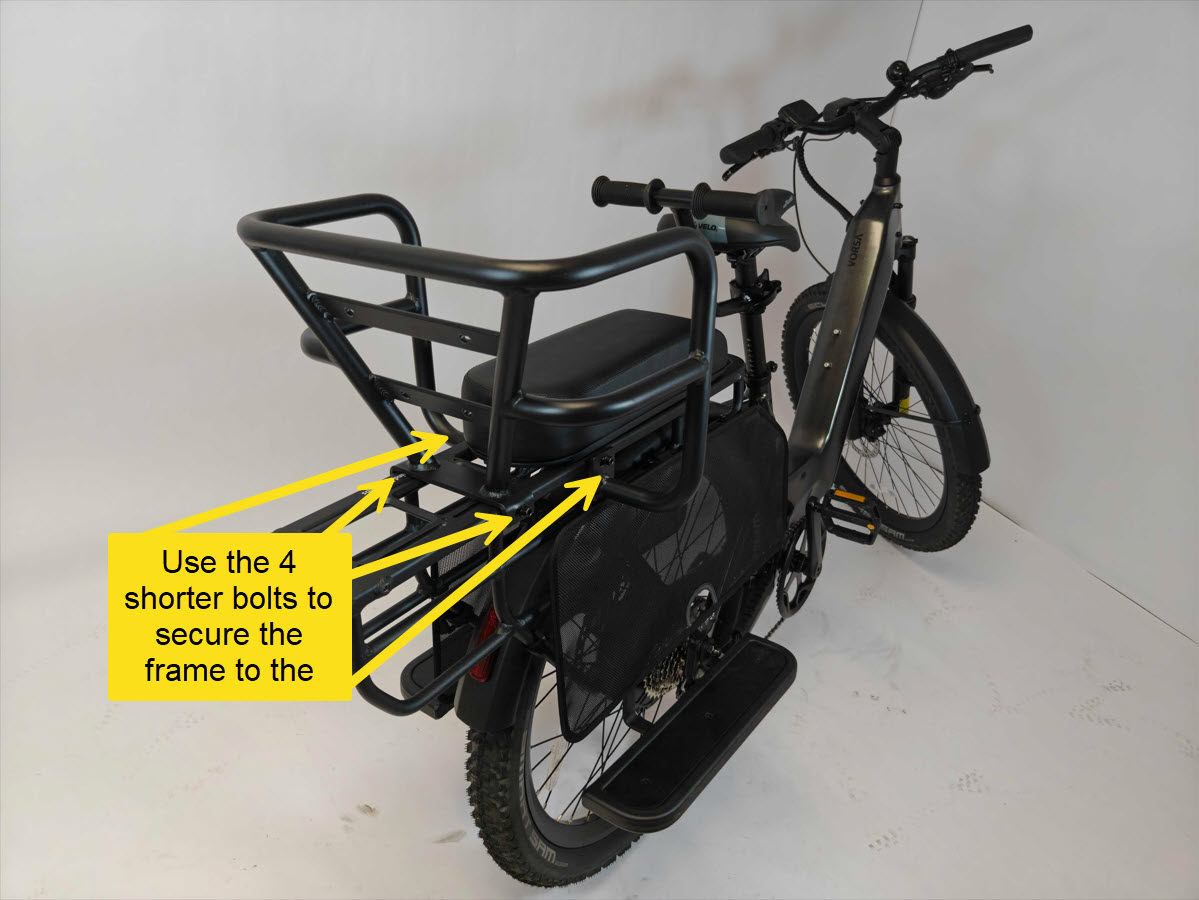

Captains Seat Frame Install

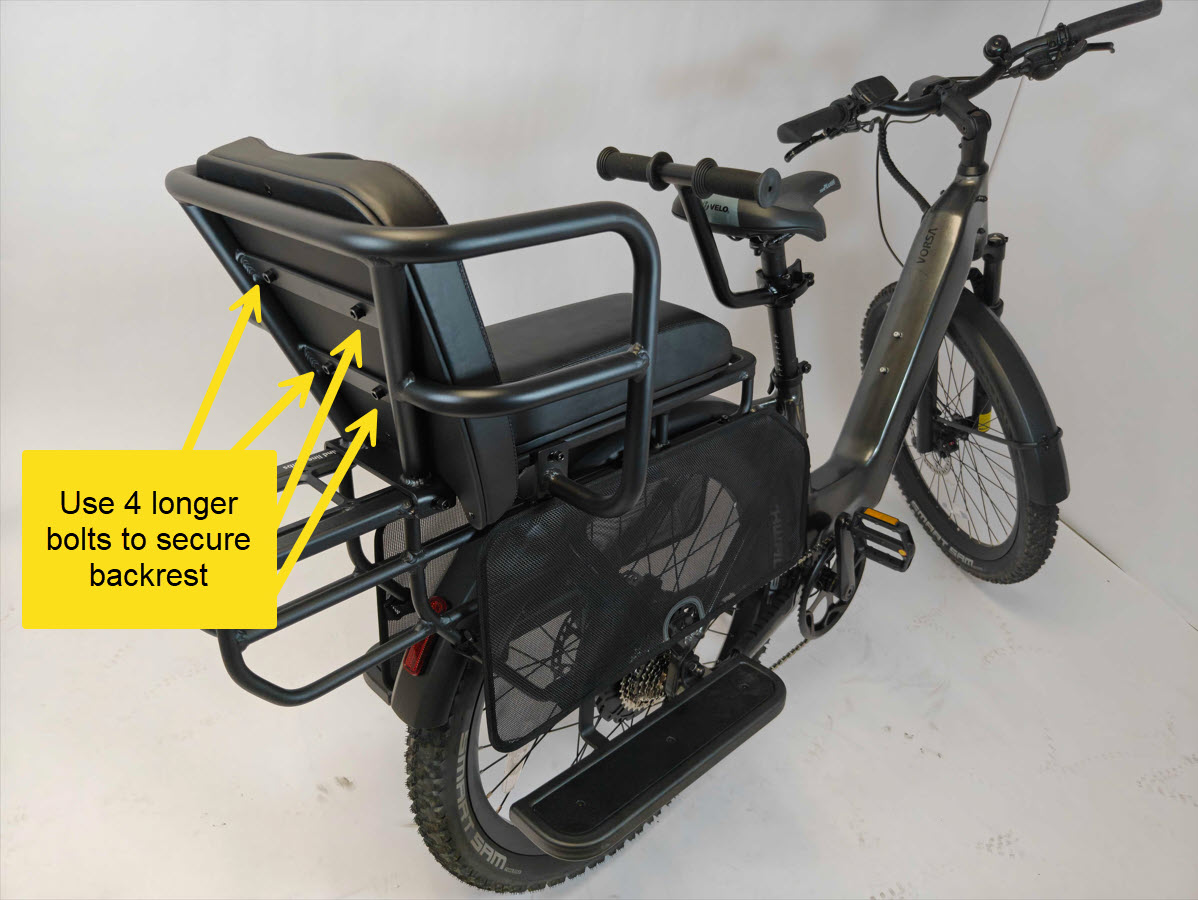

Captain's Seat Backrest Install

Final Notes

Overall, these accessories are fairly straight forward to install. We hope this helps and feel free to reach out to our knowledgeable customer support team with photos and videos if you run into issue along the way.
